Omniflow

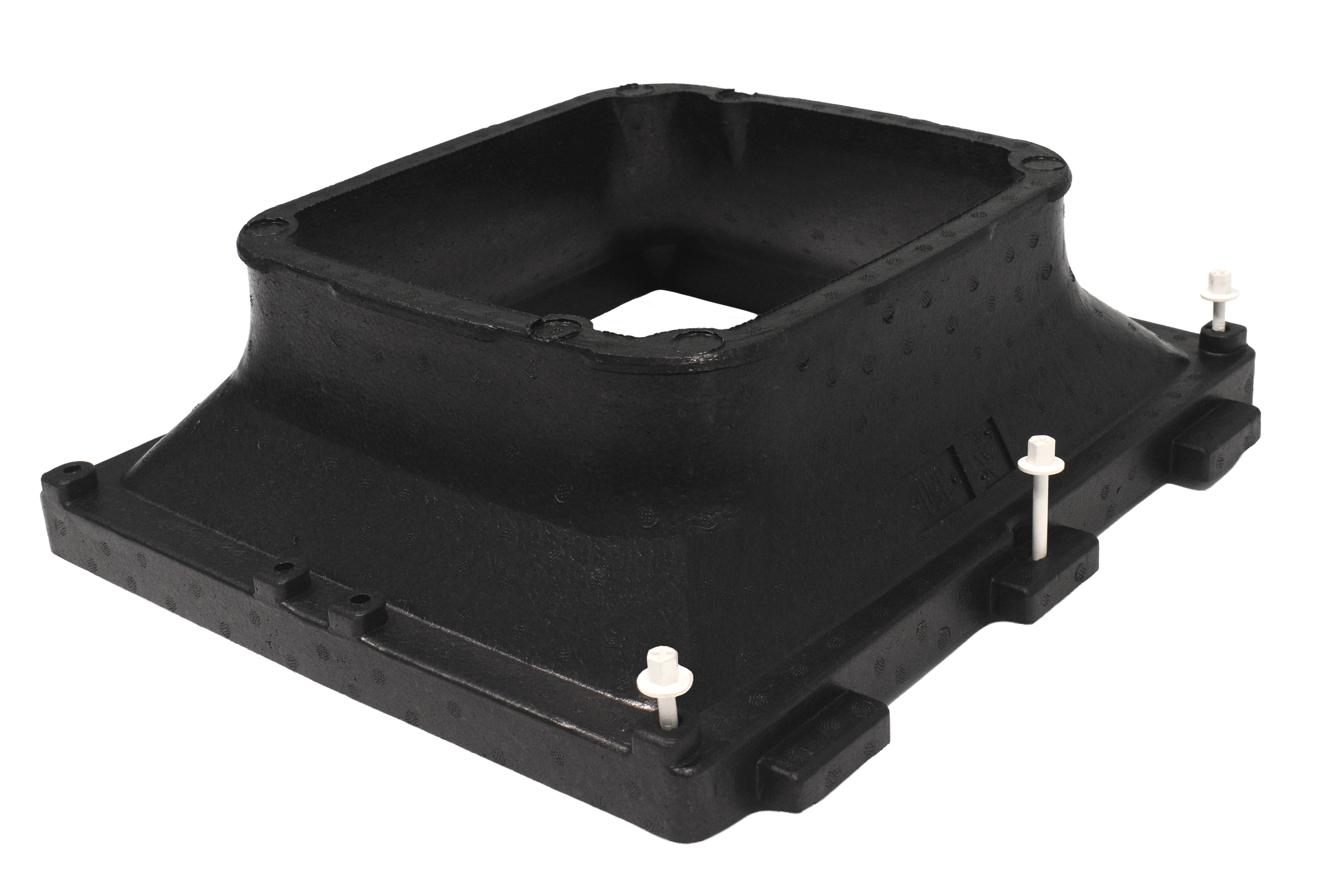

Omniflow is a modular zoning outlet system. One body takes a single duct run and splits it into several outlets. The Staark catalogue lists the bodies in 2, 3, 4, 5 and 6 way configurations, together with inlet spigots, outlet spigots, a zoning motor and a blanking plate.

The catalogue lists manual bodies, full manual bodies, body-only versions and motorised bodies supplied with motor and cable. Tell us the number of outlets and the control you need and we will confirm the listed codes.

Omniflow suits installations where one duct run has to serve several outlets from a single distribution point. Talk to us about the layout and we will work through the configuration with you.

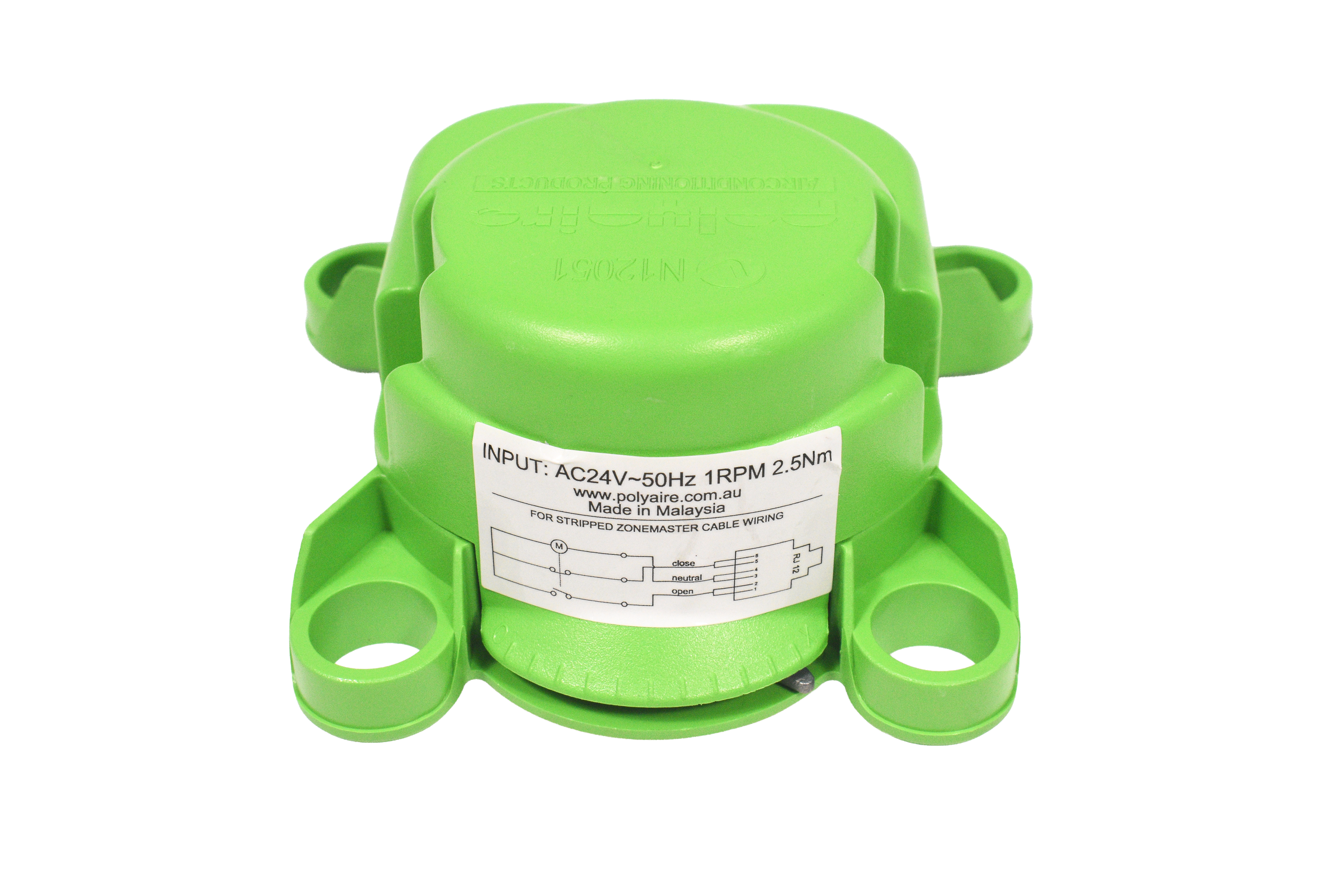

Manual and full manual bodies are listed for on-site adjustment. Motorised bodies are listed with a 24 V motor and cable, and the motor is also listed on its own. Confirm the control method you need when you enquire.

Listed outlet spigots are 200, 250, 300 and 350 mm. Listed inlet spigots run from 300 to 500 mm, with the larger sizes listed against the 5 and 6 way bodies. Confirm the connection sizes for your ductwork before ordering.

Request the applicable certification and test evidence for the proposed product, configuration and market before specifying. We will supply what applies to the items you are quoting.

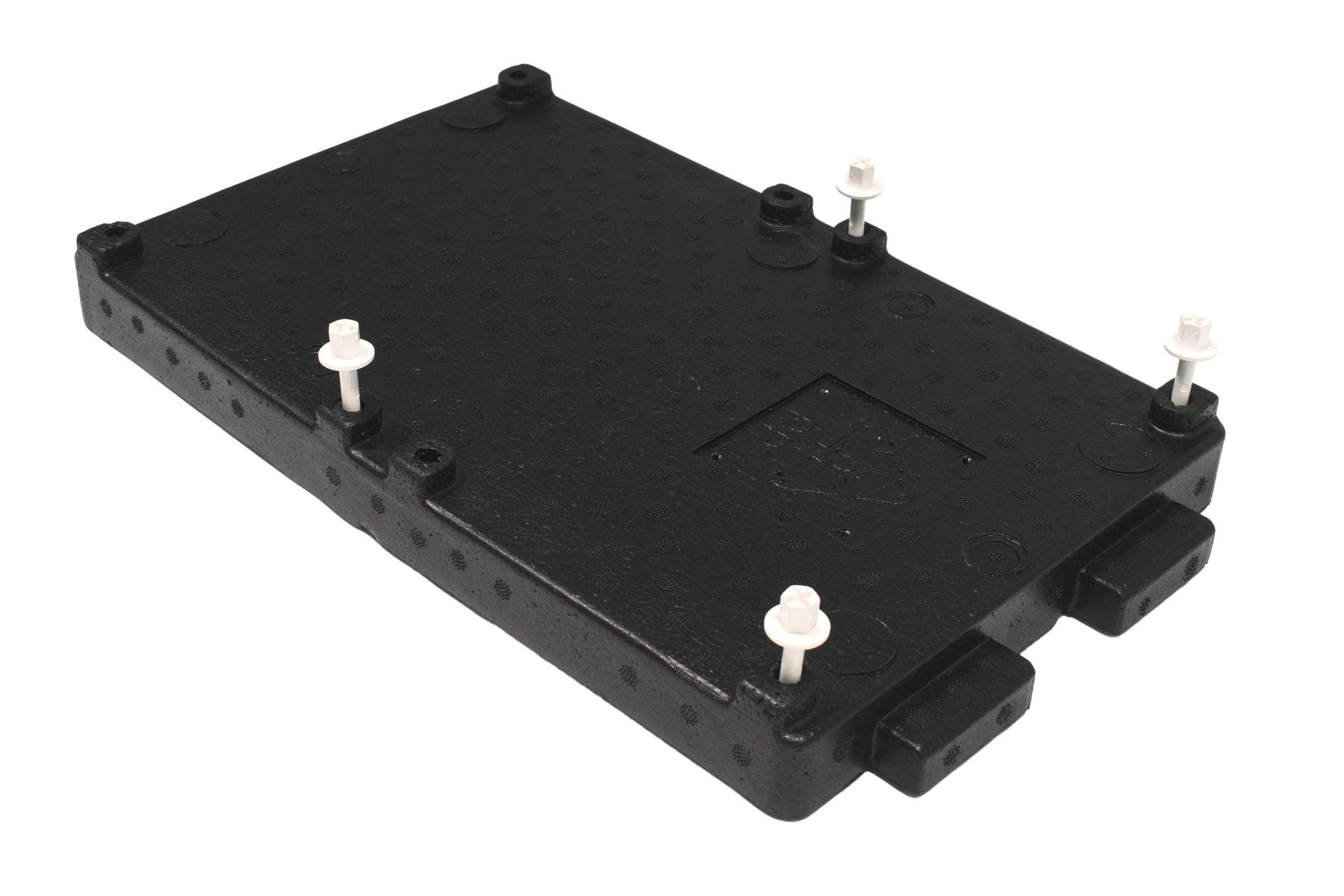

Zoning bodies, inlet spigots, outlet spigots, the 24 V zoning motor and the blanking plate are each listed as their own product codes in the Staark catalogue.
